Professional CAD Drafting Services for
Marine Safety, Fire & Emergency Plans
LightForge Technologies provides expert CAD drafting for marine safety plans, fire layouts, and emergency response drawings.
Accurate, Compliant, Reliable.
Our Expertise
by Numbers
With a proven track record of completing over 8 marine engineering projects, we have supported shipbuilders, maritime operators, and offshore industries in turning complex ideas into reality. Our team combines innovation, technical expertise, and dedication to deliver engineering solutions that exceed expectations. From initial design to final implementation, every project is handled with precision and care, ensuring safety, efficiency, and reliability, while empowering our clients to navigate their maritime challenges confidently.
Value Delivered
$2852
Delivering measurable value through tailored and effective solutions.
Customers
12
Delivering quality expertise, one client at a time.
Projects Delivered
8
Successfully delivered tailored solutions for real-world needs.
Client Transactions
21
Successfully completed transactions with a focus on quality service.
Precision in Every Design
CAD projects focused on accuracy, functionality, and real-world application—delivering detailed layouts and 3D models for engineering and construction needs.

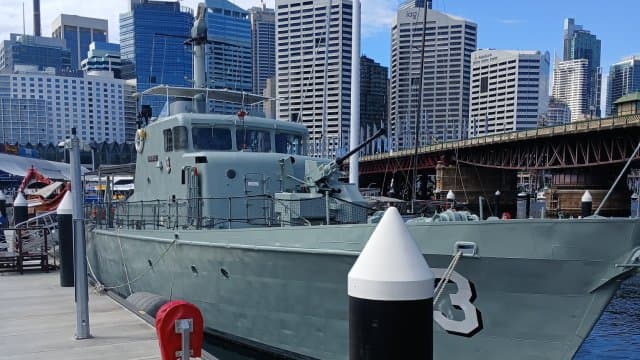

HMAS Advance
HMAS Advance (P 83) was an Attack-class patrol boat of the Royal Australian Navy (RAN). Constructed during 1967 and commissioned into the RAN in 1968,...
Click to view PDF →

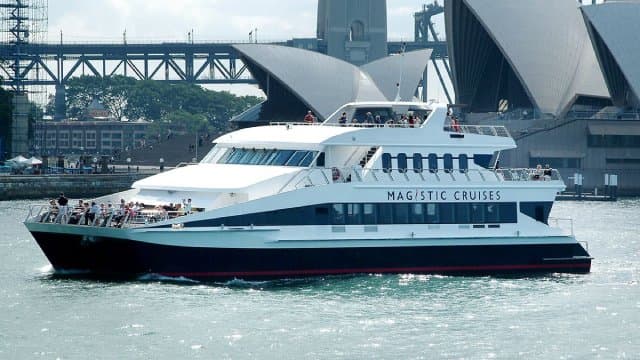

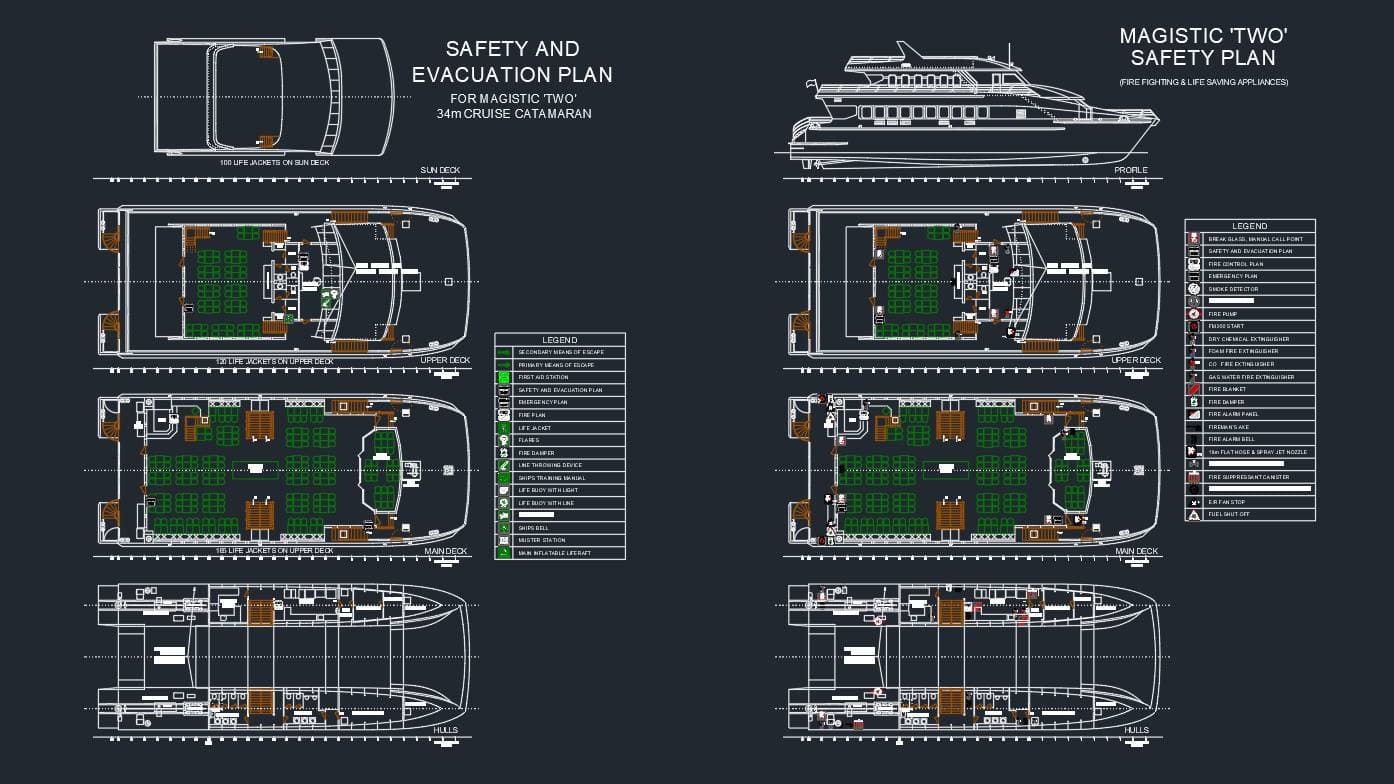

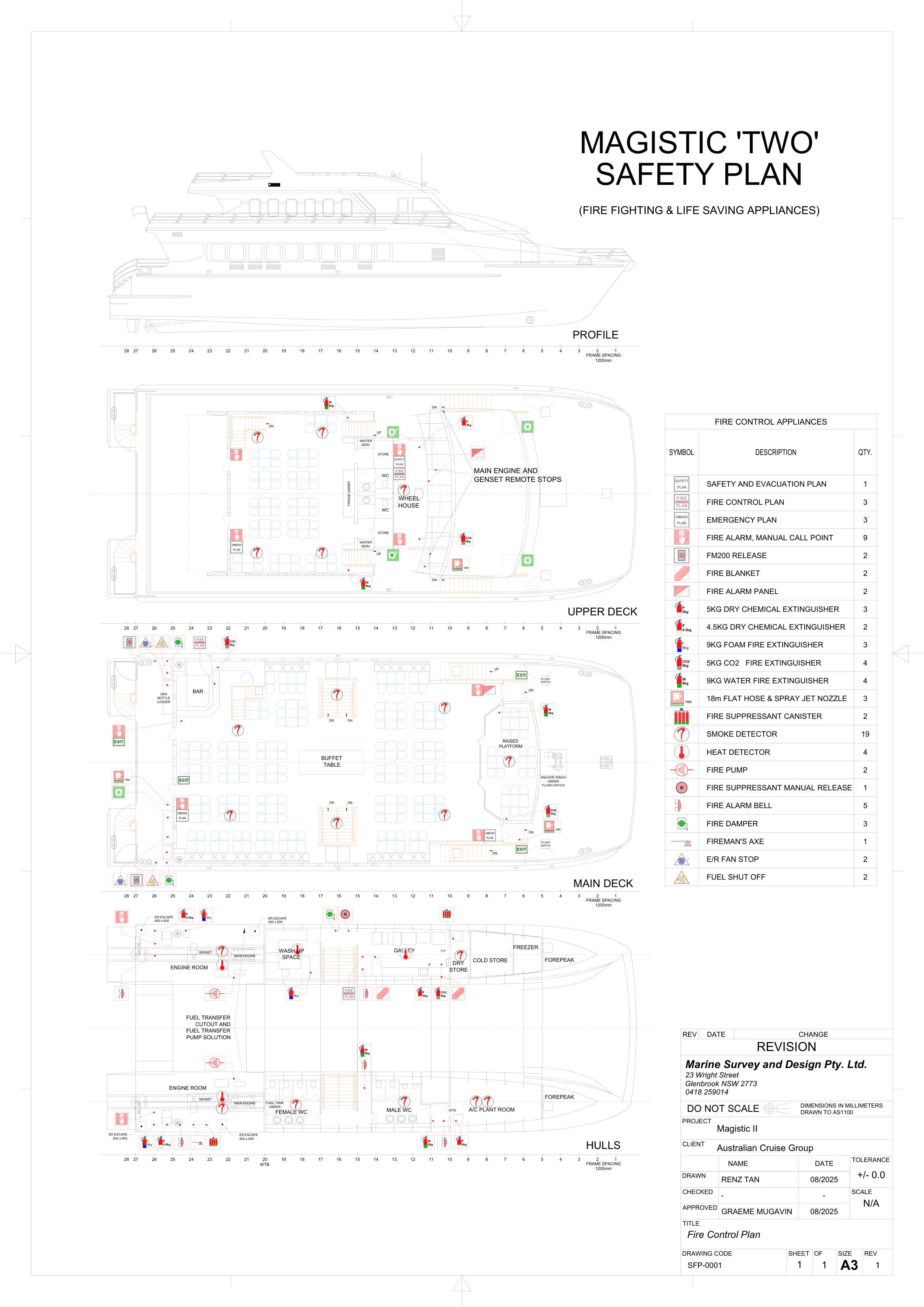

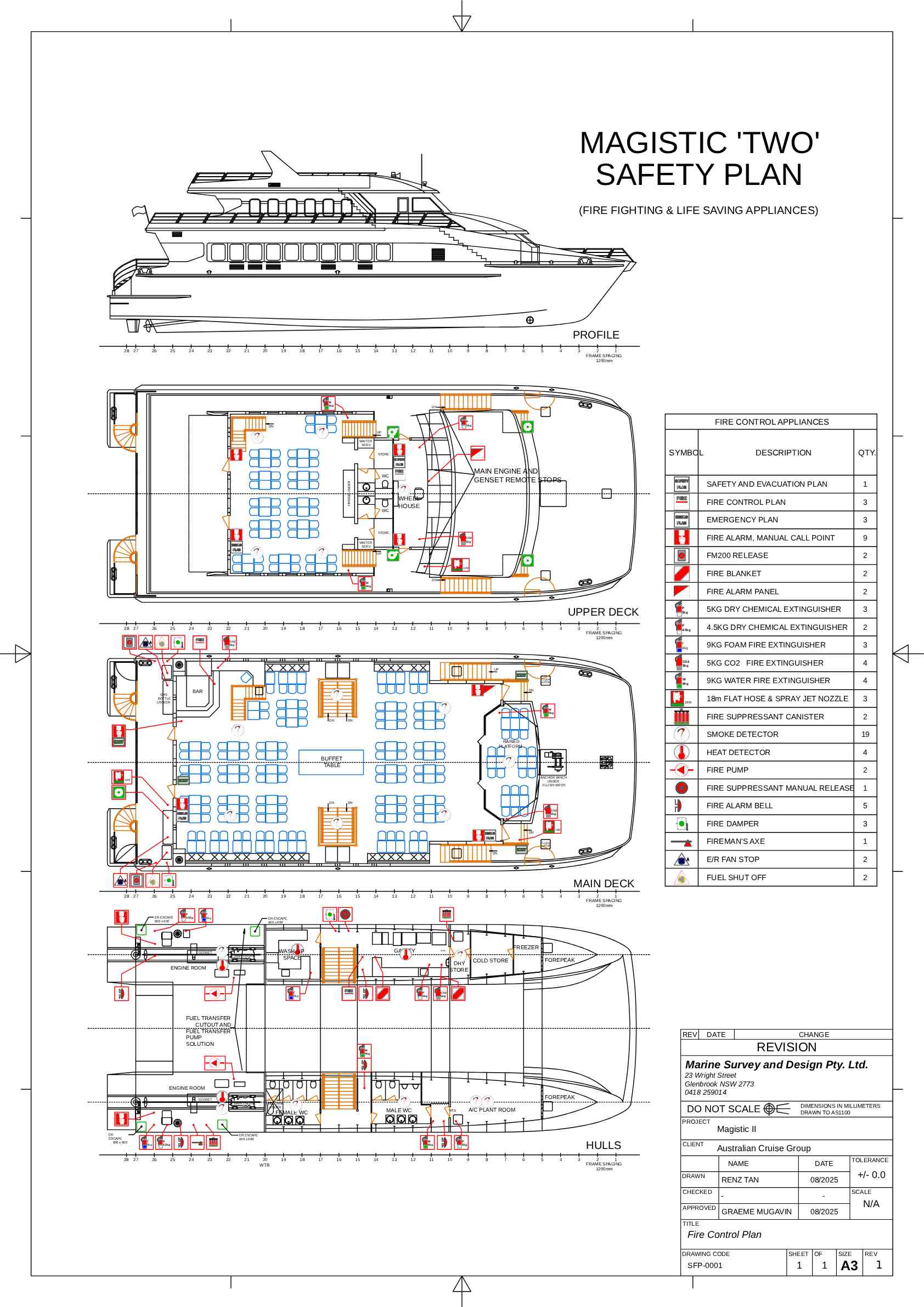

Magistic Two
Magistic Two is a multi-million dollar catamaran on Sydney Harbour with 3 outdoor decks, a large dining saloon and a VIP Top Deck for private function...
Click to view PDF →

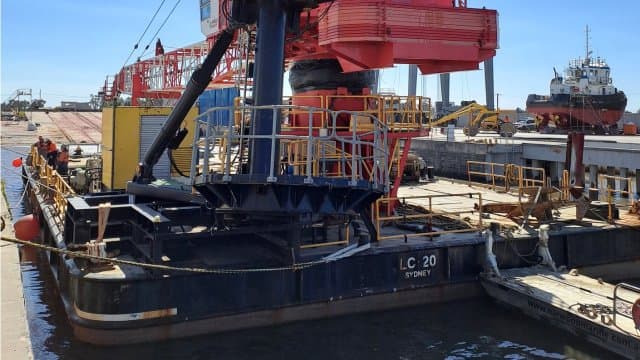

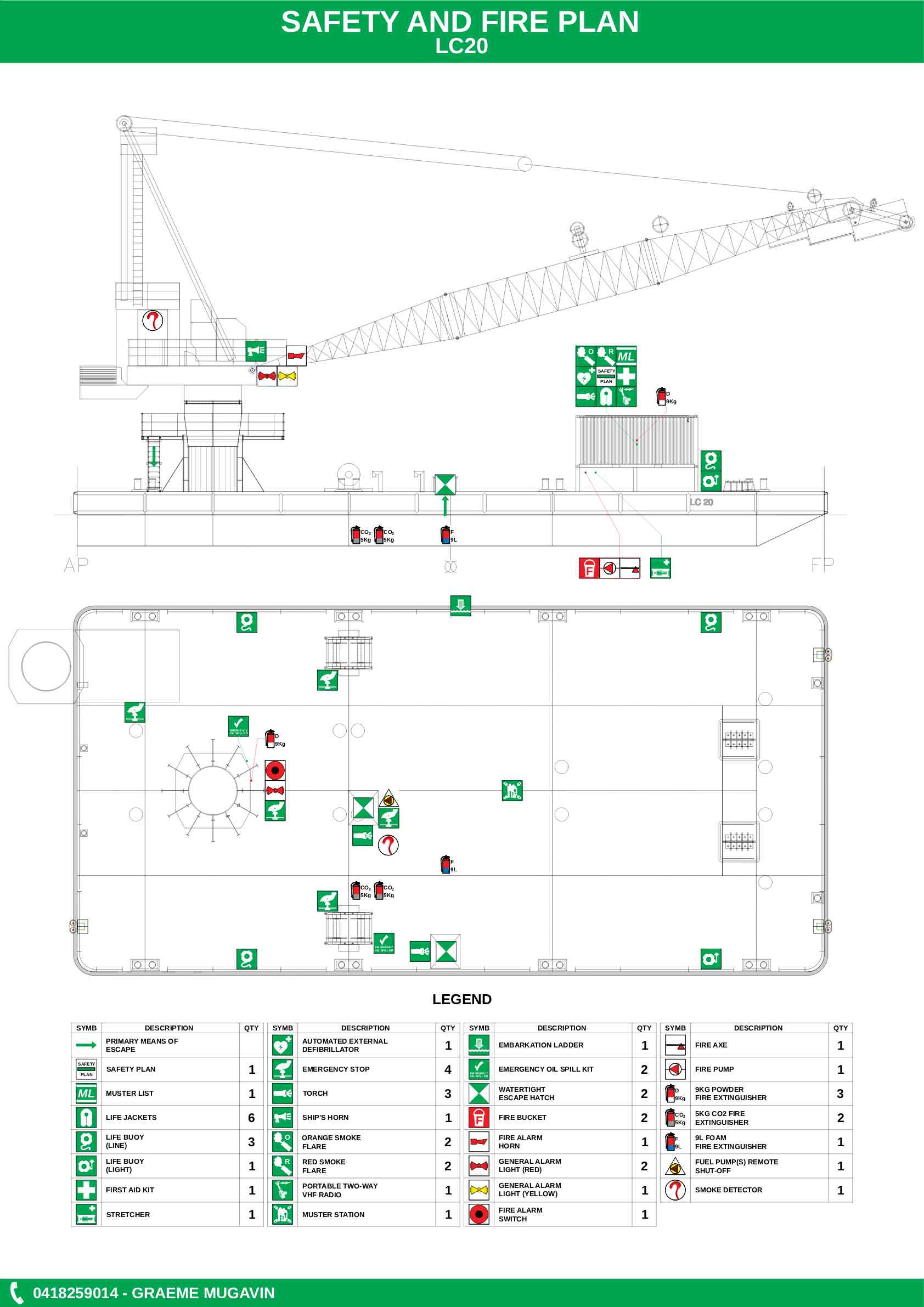

LC 20
Built in 2009, the floating barge was outfitted with a shear legs crane, the largest of its kind to operate in Australian waters, capable of lifting u...
Click to view PDF →

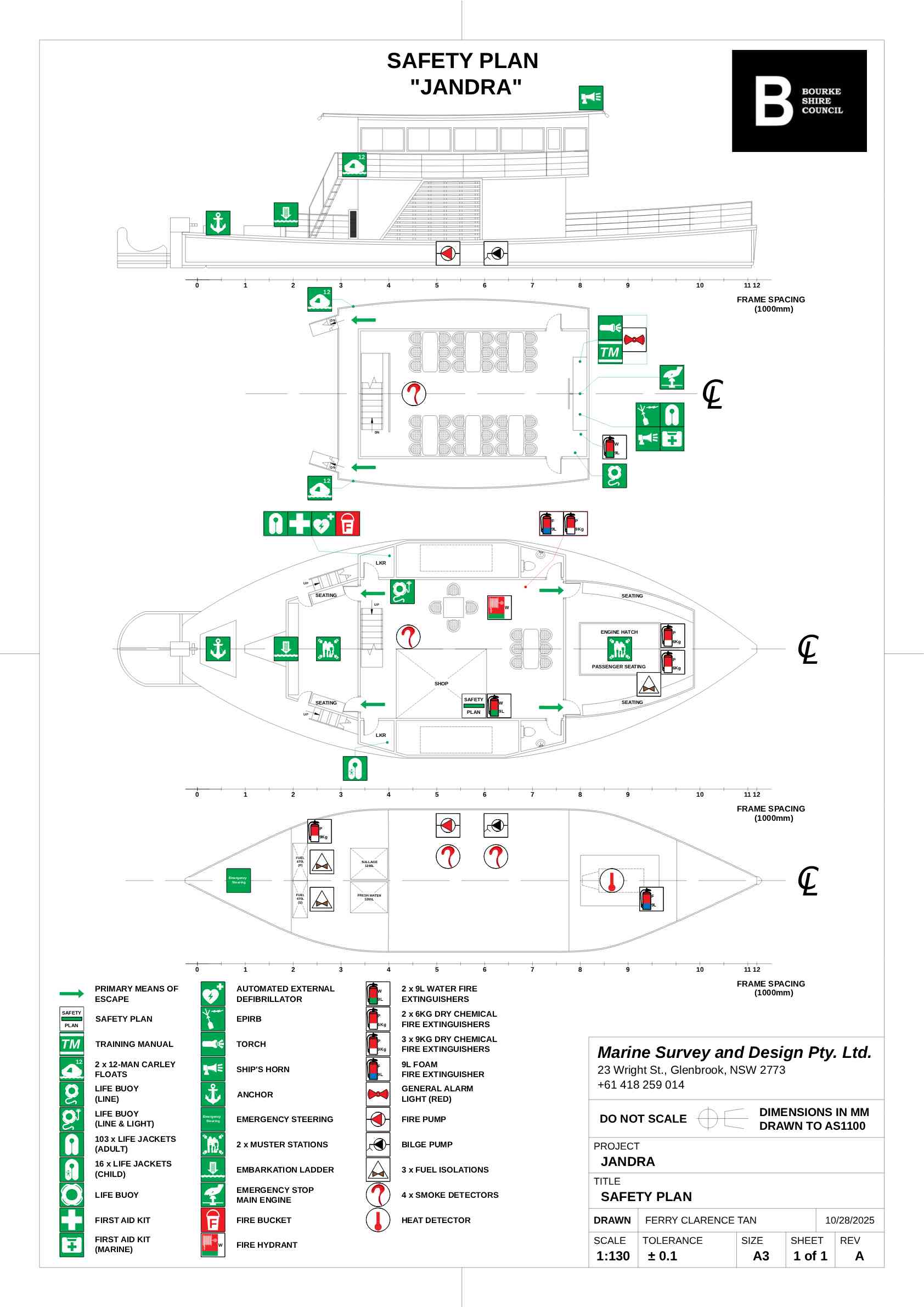

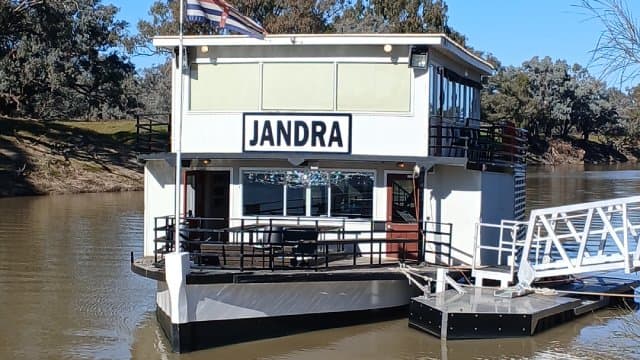

Jandra
The original Jandra was a steam paddle boat, built in Mannum, South Australia, in 1894 for Arthur Senior of Bourke. Their modern paddle vessel was bui...
Click to view PDF →

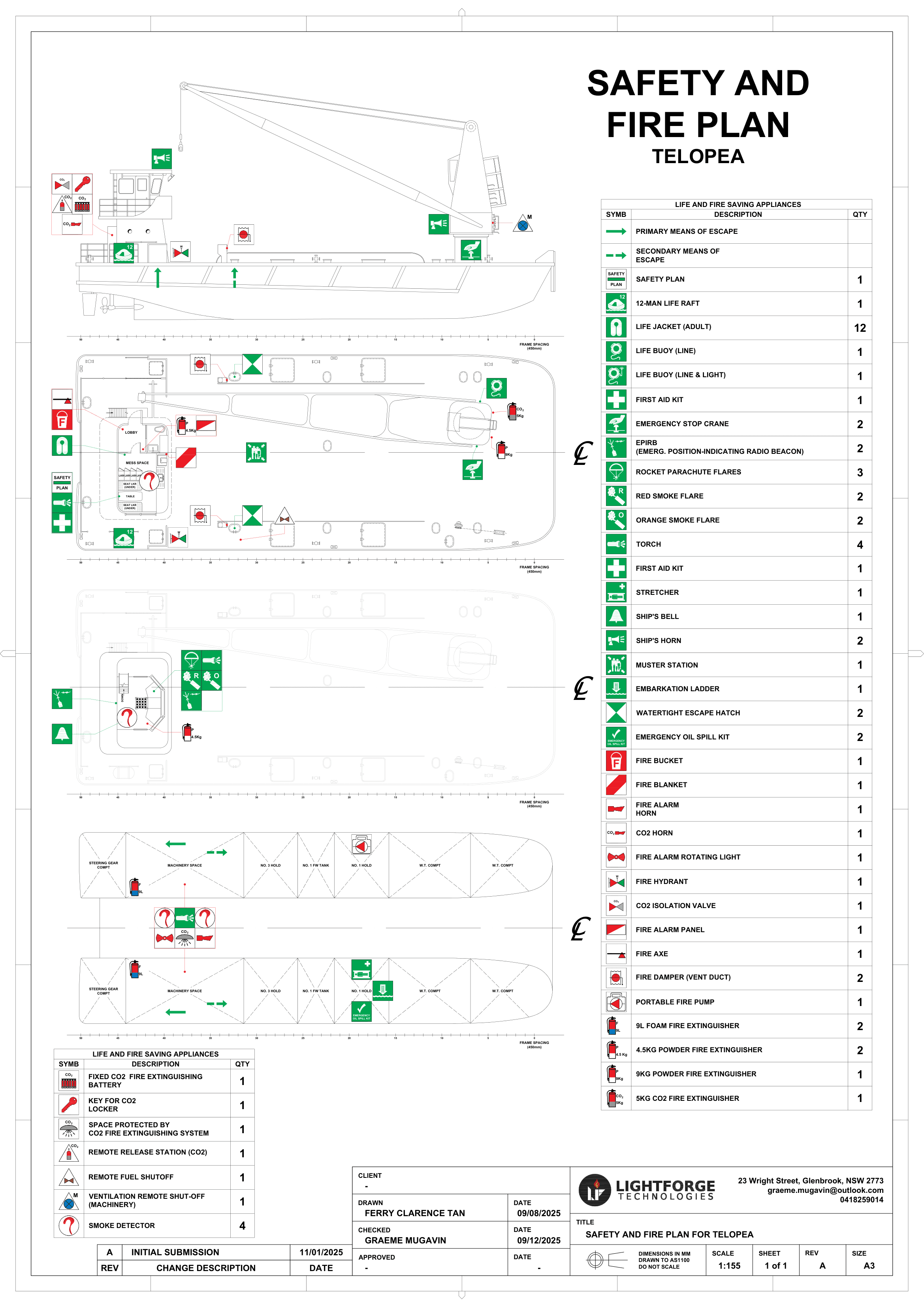

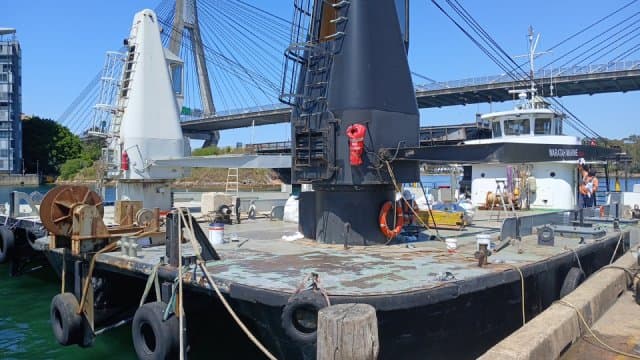

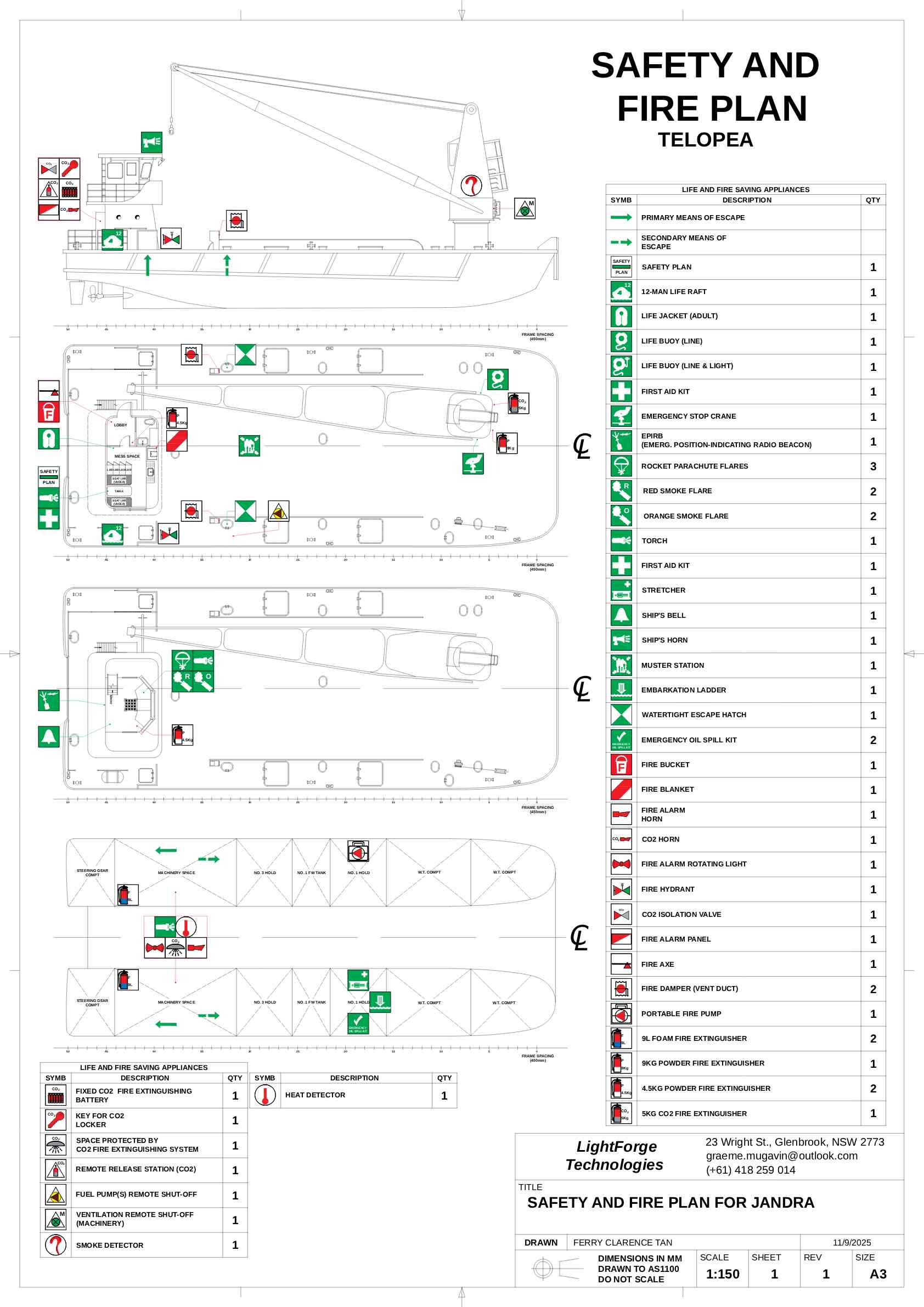

Telopea
The term "Telopea" is also the botanical name for the Waratah, the state floral emblem of New South Wales, Australia, but the provided number specific...
Click to view PDF →

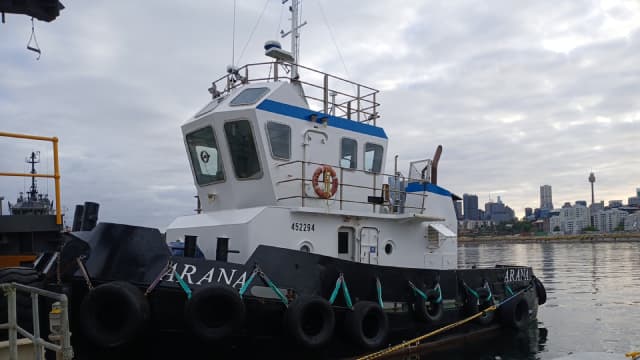

Arana
The Arana is an Australian-flagged tugboat currently active in East Australian waters, often spotted in Sydney Harbour. It is a smaller utility tug pr...
Click to view PDF →

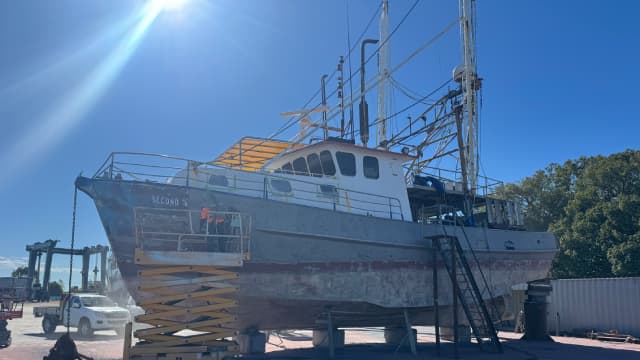

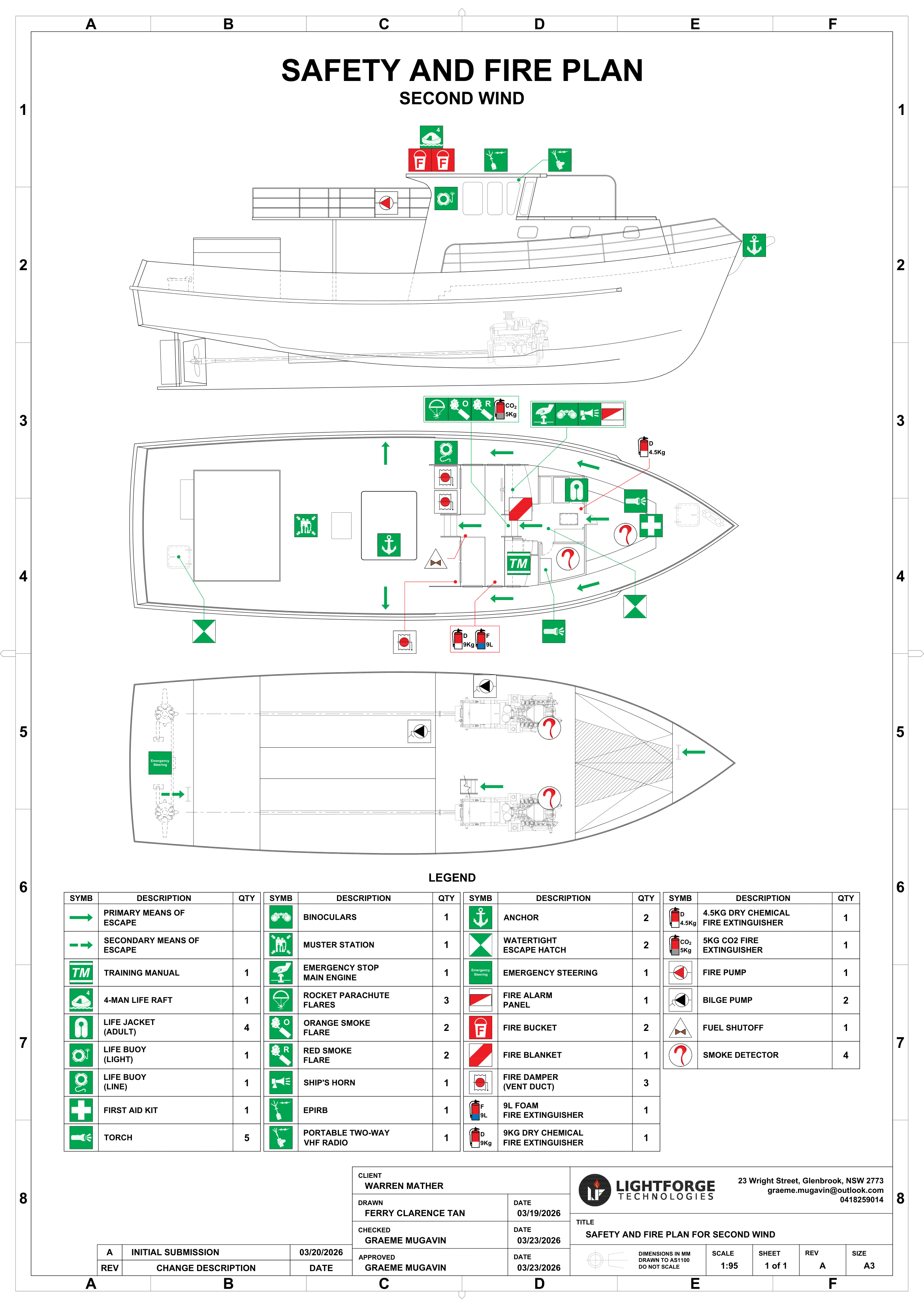

Second Wind
This vessel has historical significance in Northern Australia; it was reportedly used to rescue the crew of the prawn trawler Golden Girl in the early...
Click to view PDF →
Otter
Naval Workboat Otter, the Navy's longest-serving workboat, celebrated its 40th anniversary at HMAS Cairns. Built in the 1970s-80s by NQEA, it is the l...
Click to view PDF →
